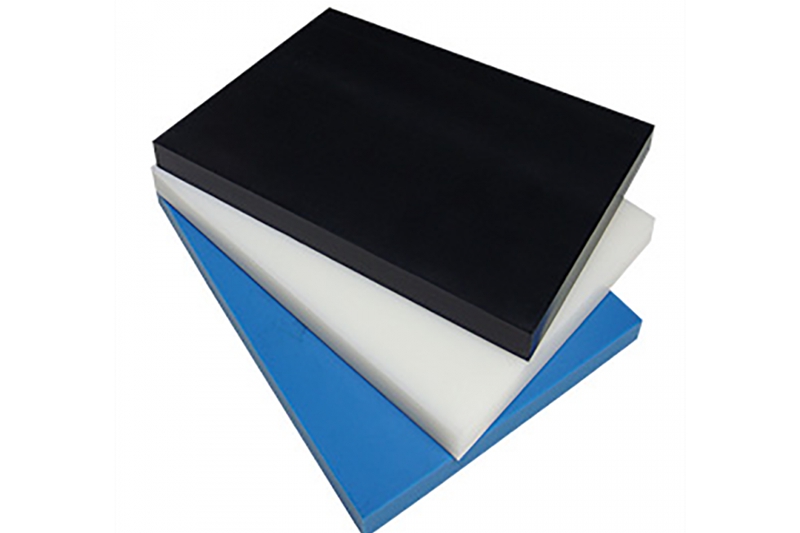

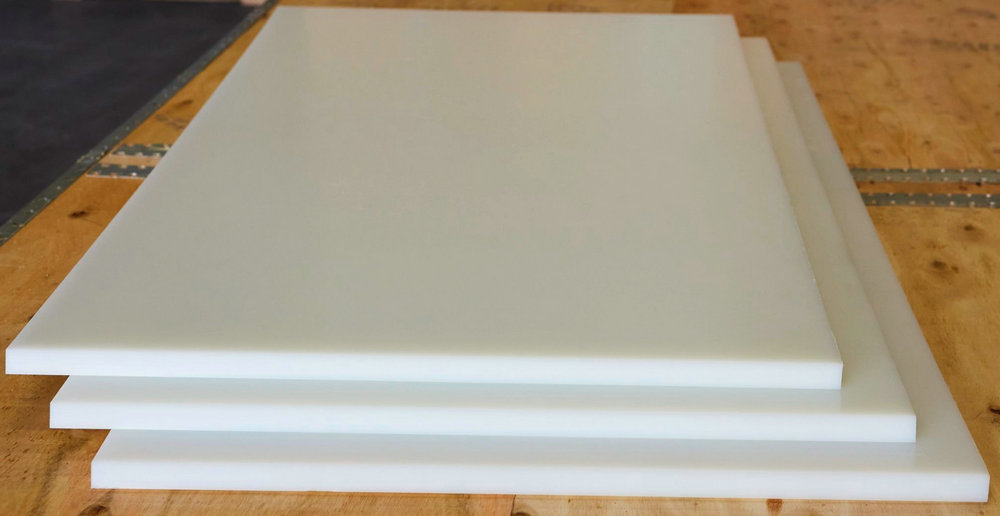

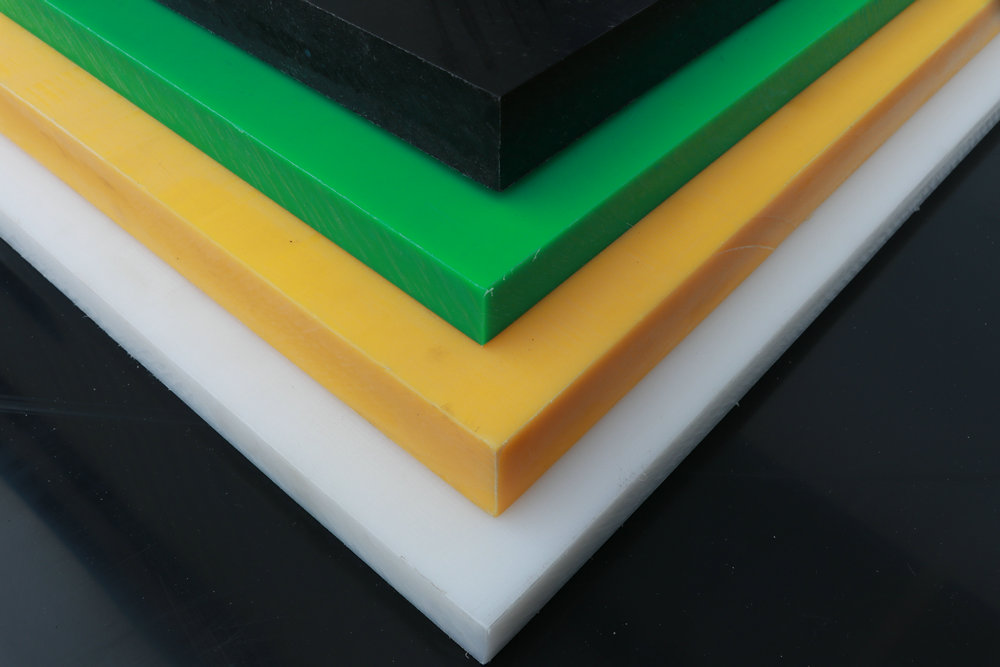

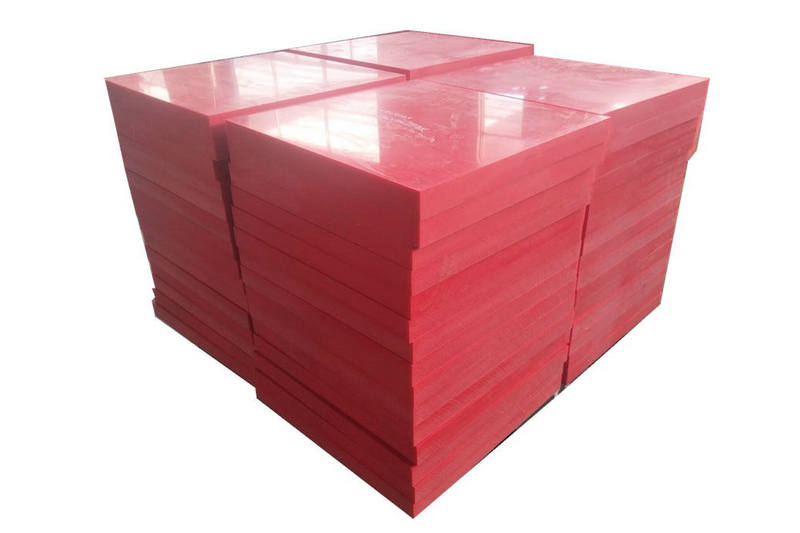

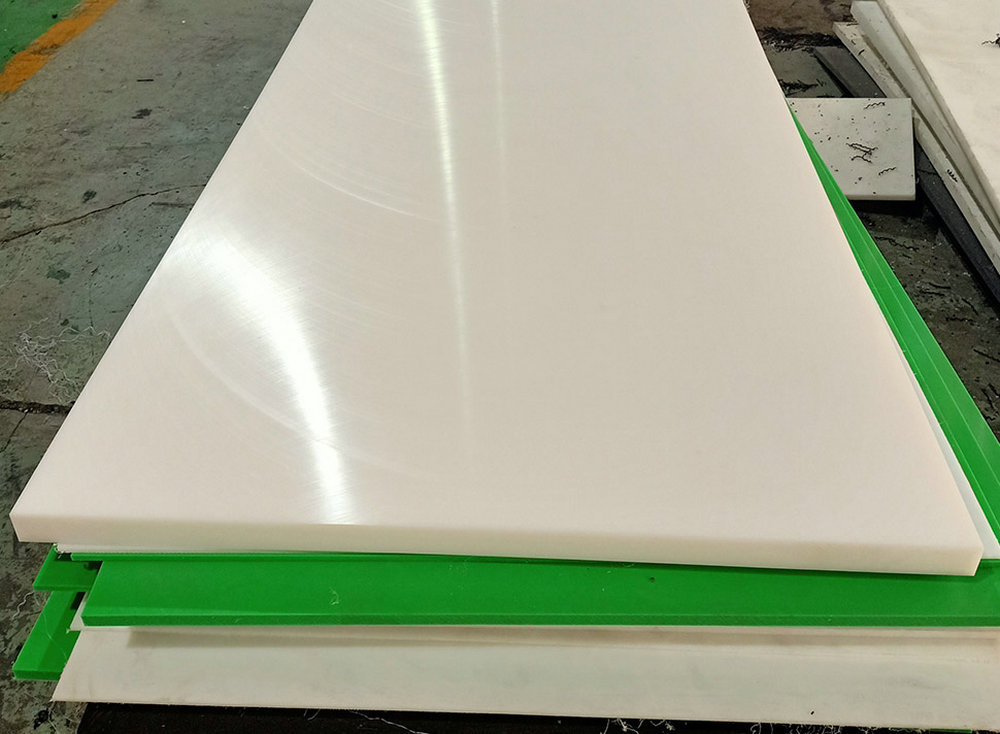

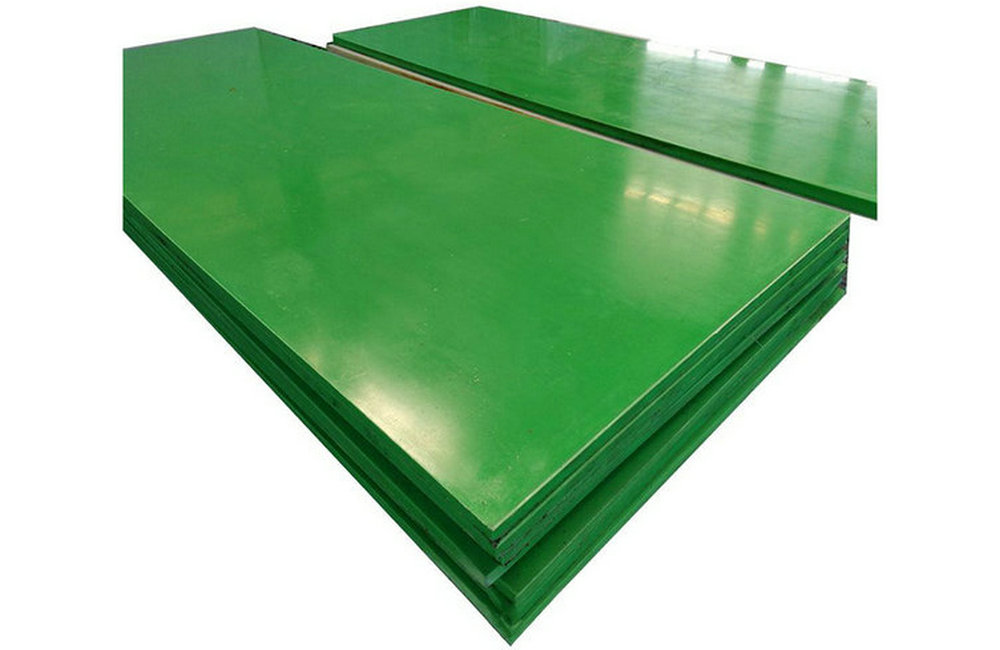

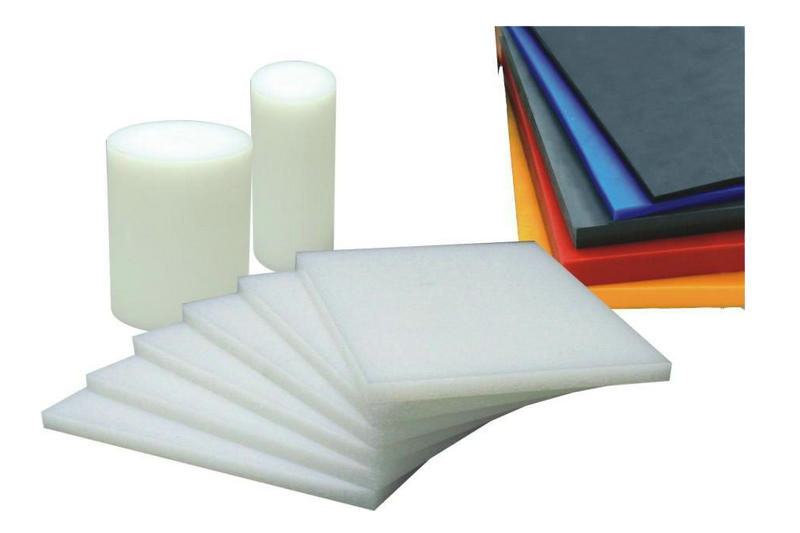

UHMWPE SHEETS
UHMWPE Sheets are flat panels made from Ultra-High Molecular Weight Polyethylene, a type of polyethylene with extremely long chains that result in a very high molecular weight (typically above 3–6 million g/mol). This gives the material exceptional toughness, impact resistance, and wear resistance. UHMWPE sheets are known for their low coefficient of friction, excellent abrasion resistance, and chemical inertness. Unlike standard polyethylene, UHMWPE cannot be melt-processed due to its high viscosity and is instead manufactured through compression molding or ram extrusion. They are widely used in applications where durability and low friction are essential, from industrial wear surfaces to medical devices and high-performance equipment.
Key Features:
-Exceptional Wear & Abrasion Resistance:
UHMWPE sheets have outstanding resistance to wear, 15x more resistant to wear than carbon steel, making them ideal for high-friction and heavy-duty applications.
-Low Coefficient of Friction:
Their inherent slipperiness minimizes friction between moving parts, which leads to energy savings and extended equipment life.
-High Impact Strength:
The ultra-high molecular weight provides excellent impact resistance, absorbing shocks without cracking or deforming. Virtually unbreakable, even at cryogenic temperatures (-200°C).
-Excellent Chemical Resistance:
UHMWPE is inert to most chemicals, acids, and solvents, ensuring long-lasting performance even in corrosive environments.
-Low Moisture Absorption:
The material virtually does not absorb water, maintaining its mechanical properties in humid or wet conditions.
-High Toughness & Durability:
Its molecular structure grants the sheet exceptional toughness and durability, even under continuous heavy loads.
-Self-Lubricating Properties:
The low friction characteristics (0.10–0.20) often eliminate the need for additional lubrication in many applications.
-Lightweight: Density of 0.93–0.94 g/cm³ (floats on water).
Types:
UHMWPE sheets are available in several variants based on specific formulations and processing methods:
Type | Key Characteristics | Applications |
Virgin UHMWPE | Highest purity, optimal mechanical properties. | Medical implants, high-wear industrial parts. |
UV-Stabilized | Contains UV inhibitors for outdoor durability. | Marine dock bumpers, outdoor conveyor systems. |
Anti-Static | Embedded carbon fibers to dissipate static charges. | Electronics manufacturing, explosive environments. |
FDA-Compliant | Meets FDA 21 CFR 177.1520 for food contact. | Food processing equipment, meat cutting boards. |
Glass-Fiber Reinforced | Enhanced stiffness and load-bearing capacity. | Heavy-duty gears, structural components. |
Medical Grade | Biocompatible (ISO 10993) for surgical and implant uses. | Orthopedic spacers, joint replacements. |
Technical Parameters:
Note: The values below represent typical ranges and may vary by specific grade.
Parameter | Typical Value/Range | Remarks |
Density | 0.93 – 0.97 g/cm³ | Similar to other PE grades, ensuring high strength, Lighter than water. |
Tensile Strength | 20 – 35 MPa | Provides durability under tensile loads |
Impact Strength | Exceptionally high (can exceed 100 J/m) | High energy absorption characteristic |
Elongation at Break | 300 – 500% or more | Indicates excellent ductility |
Hardness | Typically 60-70 Shore D | Depending on formulation and processing |
Coefficient of Friction | 0.05 – 0.10 | One of the lowest among engineering plastics |
Operating Temperature | -200°C to +80°C (continuous use) | Short-term peaks may be higher; stability at low temps |
Melting Point | ~130°C | Determines processing limits |
Moisture Absorption | < 0.01% | Virtually negligible, ensuring dimensional stability |
Product Benefits:
-Unmatched Durability:
The ultra-high molecular weight gives UHMWPE sheets excellent resistance to wear, impact, and abrasion, which is critical in demanding industrial environments.
-Low Maintenance:
Their self-lubricating and low friction properties reduce the need for frequent maintenance or additional lubrication, lowering operating costs.
-Versatile Performance:
The combination of chemical resistance, toughness, and low moisture absorption makes UHMWPE suitable for a diverse range of applications—from food processing to heavy machinery.
-Enhanced Safety:
In applications such as cutting boards or machine guards, the low friction and high impact resistance improve operational safety.
-Eco-Friendly:
As a thermoplastic, UHMWPE is recyclable, supporting sustainability efforts.
Applications:
UHMWPE sheets are used across various industries due to their excellent performance characteristics:
-Industrial Wear Parts:
Used as liners, chute inserts, and conveyor belt components to reduce wear and prolong the service life of machinery.
-Food Processing Equipment:
Employed in cutting boards, food processing surfaces, and packaging systems where hygiene and low friction are essential.
-Medical Devices:
Utilized in joint replacements, prosthetic components, and surgical instruments where durability and biocompatibility are crucial.
-Transportation & Heavy Machinery:
Incorporated into sliding or wear surfaces in rail, mining, and construction equipment.
-Custom Fabrication:
Used for custom components in robotics, material handling, and other specialized applications that require a combination of strength, low friction, and chemical resistance.
Storage & Handling:
To preserve the integrity and performance of UHMWPE sheets, consider the following storage and handling guidelines:
-Storage Environment:
Store in a cool, dry, and well-ventilated area away from direct sunlight and extreme temperature fluctuations.
-Handling Procedures:
Use clean gloves when handling to avoid contamination. Although UHMWPE is tough, care should be taken to avoid scratches or gouges on the surface.
-Packaging:
Keep sheets in protective packaging or covers to prevent dust accumulation and physical damage during transit and storage.
-Stacking:
When stacking, use support systems to avoid warping or pressure marks on the surface, especially if storing for an extended period.
-Inspection:
Periodically check for any signs of surface wear, discoloration, or deformation, particularly if the material is used in critical applications.
FAQ
Q1: What is UHMWPE and why is it used for sheets?
A: UHMWPE stands for Ultra-High Molecular Weight Polyethylene. It is used for sheets because its extremely long polymer chains give it unparalleled abrasion resistance, high impact strength, and low friction properties. This makes it ideal for heavy-duty, high-wear, and low-maintenance applications.
Q2: How do UHMWPE sheets differ from other polyethylene sheets?
A: Unlike standard polyethylene sheets, UHMWPE sheets have a much higher molecular weight. This results in significantly improved toughness, wear resistance, and impact strength. They also exhibit a lower coefficient of friction, making them suitable for applications where sliding or moving parts are involved.
Q3: What industries commonly use UHMWPE sheets?
A: They are used in industrial manufacturing (for wear liners, chutes, and conveyor systems), food processing (cutting boards and hygienic surfaces), medical devices (implants and surgical instruments), and transportation (rail and mining equipment), among others.
Q4: How are UHMWPE sheets processed or fabricated?
A: UHMWPE sheets can be cut, drilled, and machined using specialized tools. Due to their high toughness, carbide or diamond-tipped tools are recommended for machining. They can also be thermoformed under specific conditions.
Q5: How does UHMWPE compare to Teflon (PTFE)?
A: UHMWPE has better wear resistance and impact strength but lower heat resistance (max 80°C vs. 260°C for PTFE).
Q6: Does UHMWPE absorb water?
A: No—moisture absorption is negligible (<0.01%), making it ideal for wet environments.
Q7: Is it suitable for high-load applications?
A: For extreme loads, use glass-fiber reinforced UHMWPE or combine with metal supports.
Q8: What is the difference between HDPE, UHMWPE, and NYlon Sheets?
A: Please refer to the matrix below:
Aspect | UHMWPE | HDPE | Nylon |
Abrasion Resistance | Exceptional | Moderate | Good |
Impact Strength | Unbreakable | High | Moderate |
Moisture Absorption | <0.01% | <0.01% | 2–3% (hygroscopic) |
Max Temp | 80°C | 80°C | 120°C (Nylon 6/6) |
Cost | $10–20/kg | $2–5/kg | $5–10/kg |
Primary Uses | High-wear parts, medical | Tanks, geomembranes | Gears, bearings |
