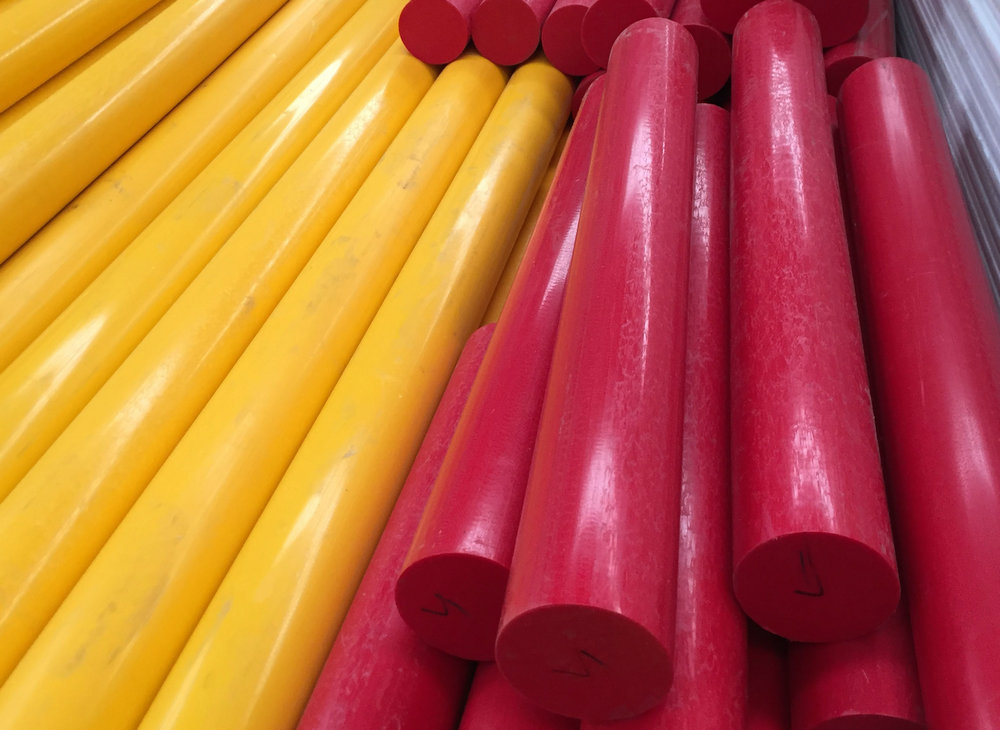

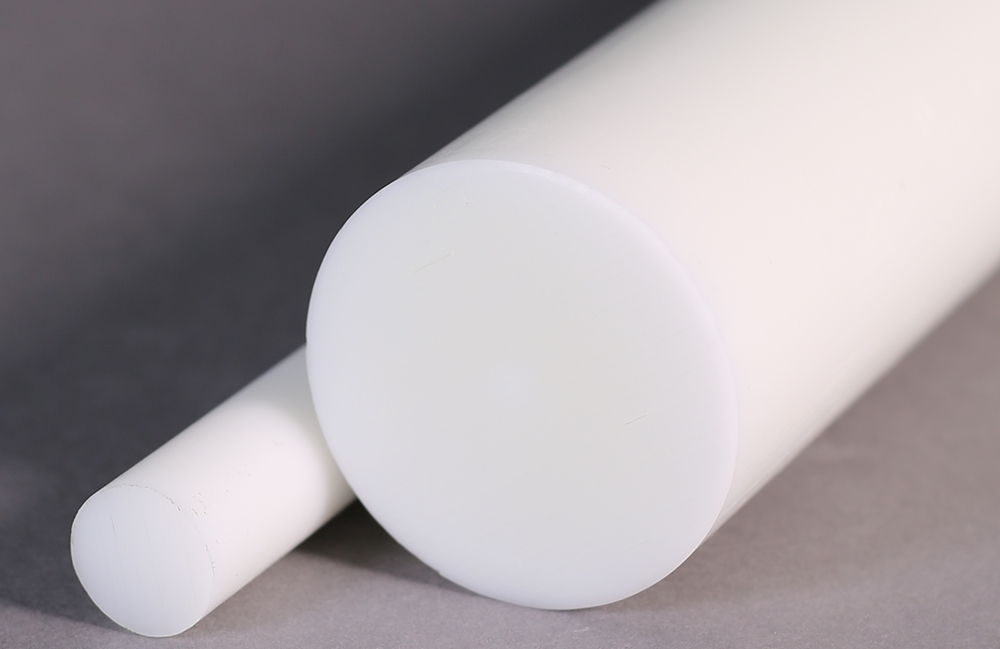

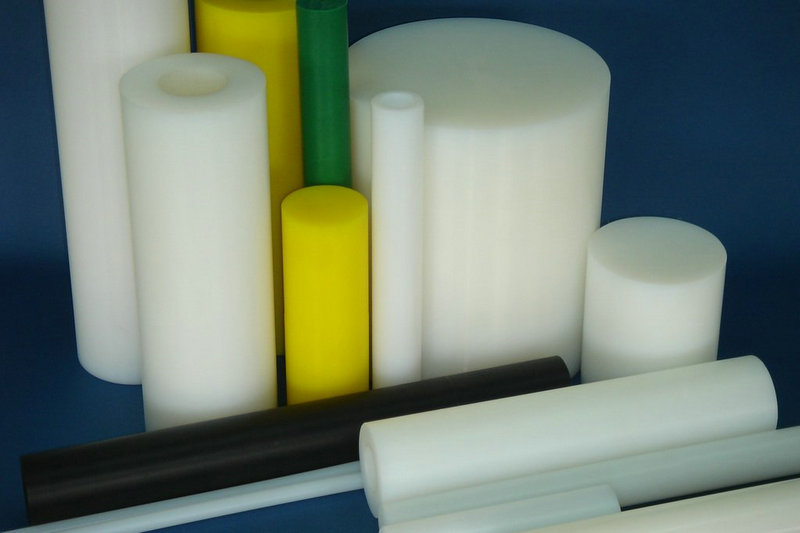

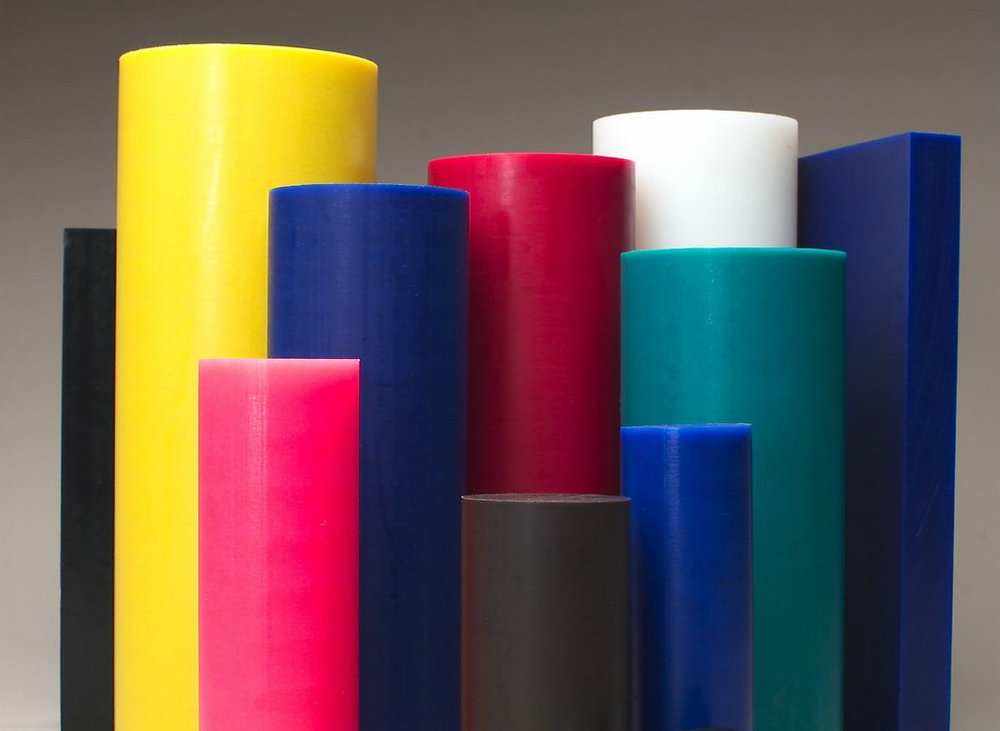

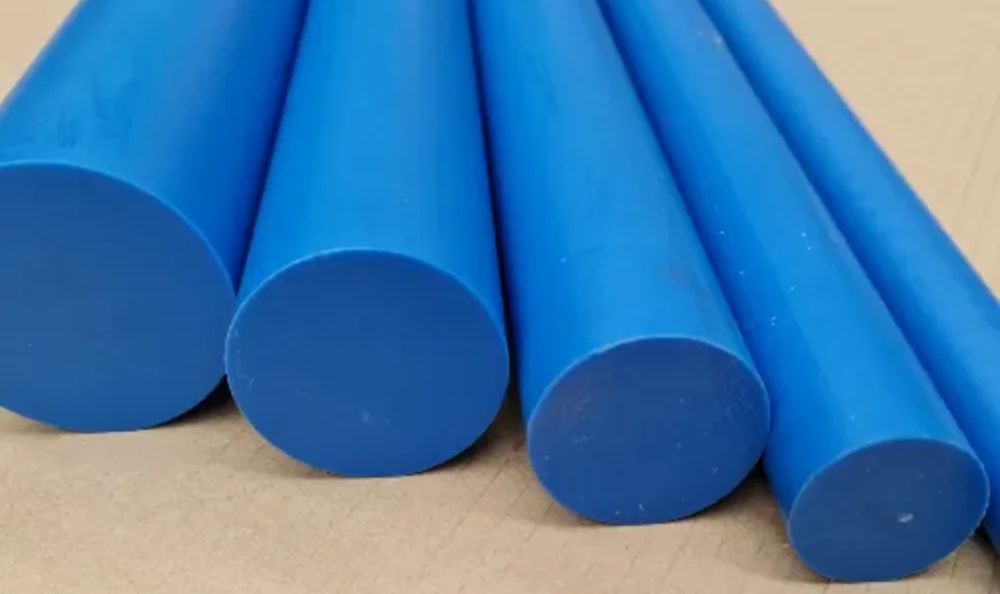

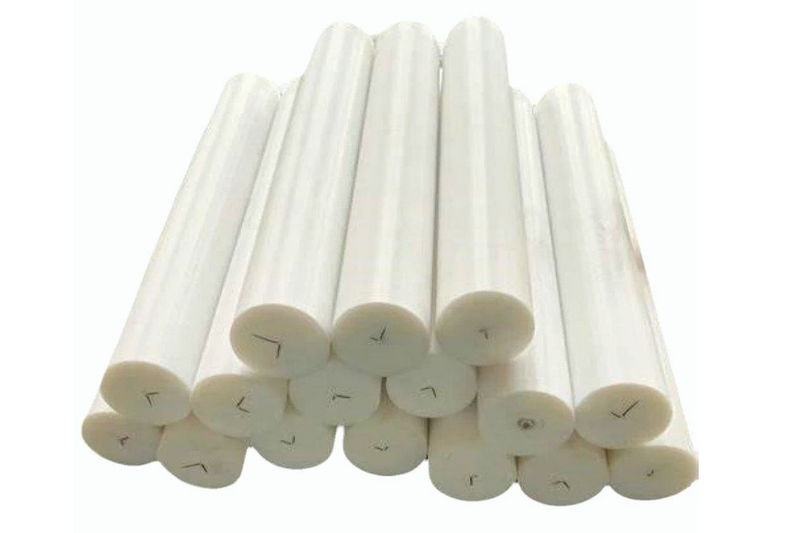

UHMWPE RODS
UHMWPE Rods are solid, cylindrical profiles fabricated from Ultra-High Molecular Weight Polyethylene—a type of polyethylene characterized by exceptionally long polymer chains, which yield a very high molecular weight (typically in the range of 3–6 million g/mol or more). This unique molecular structure gives UHMWPE its extraordinary toughness, superior wear resistance, and low friction properties. UHMWPE rods are manufactured via compression molding or ram extrusion (not melt-processed). UHMWPE rods are widely used in high-demand applications where high impact resistance, abrasion resistance, and low maintenance are critical.
Key Features:
-Outstanding Wear Resistance:
The long-chain molecular structure minimizes surface degradation, making these rods ideal for applications with high abrasion or friction.
-Low Coefficient of Friction:
Their naturally smooth surface reduces energy loss in moving parts and decreases the need for additional lubrication.
-High Impact Strength:
UHMWPE rods absorb shock and resist impact without cracking, which is essential for high-impact and dynamic applications.
-Excellent Chemical Inertness:
They exhibit resistance to a wide range of chemicals, acids, and solvents, ensuring longevity even in corrosive environments.
-Minimal Moisture Absorption:
The material’s near-zero water uptake helps maintain dimensional stability and mechanical properties over time.
-High Toughness & Durability:
These rods combine both flexibility and strength, making them highly durable under continuous stress or heavy loads.
-Self-Lubricating:
The low friction characteristics allow parts made from UHMWPE rods to run smoothly, often reducing maintenance requirements.
Types:
UHMWPE rods are available in various formulations and finishes tailored to different performance needs:
Type | Key Characteristics | Applications |
Virgin UHMWPE | Highest purity, optimal mechanical properties. | Medical implants, high-wear bearings. |
UV-Stabilized | Contains UV inhibitors for outdoor durability. | Marine dock pilings, outdoor machinery guides. |

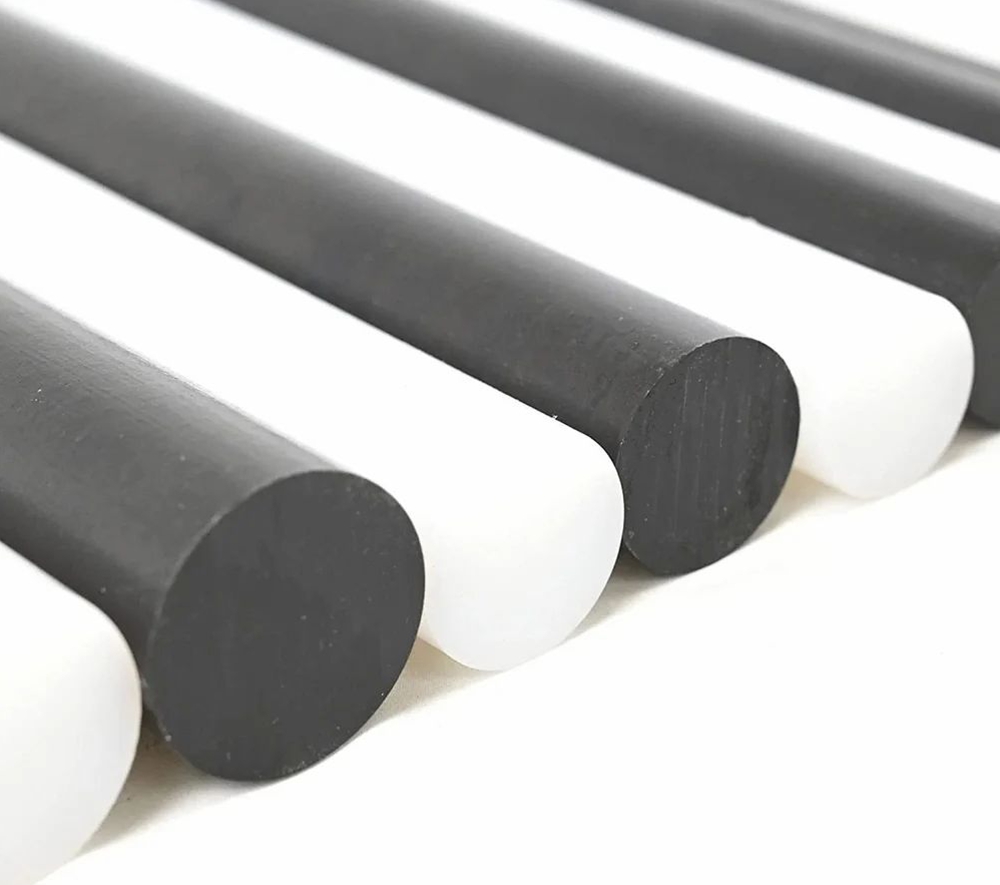

Anti-Static | Carbon-filled to dissipate static charges (10⁶–10⁹ Ω/sq). | Electronics handling, explosive environments. |
FDA-Compliant | Meets FDA 21 CFR 177.1520 for food contact. | Food conveyor rollers, meat processing equipment. |
Glass-Fiber Reinforced | 10–30% glass fiber for enhanced stiffness and load capacity. | Heavy-duty gears, structural supports. |
Medical Grade | Biocompatible (ISO 10993) for surgical use. | Orthopedic implants, joint replacements. |
Technical Parameters:
Note: The following values represent typical ranges; actual specifications may vary depending on the grade.
Parameter | Typical Value/Range | Details |
Material | UHMWPE (Ultra-High Molecular Weight Polyethylene) | Virgin, food-grade, or medical-grade variants available |
Density | ~0.93 – 0.97 g/cm³ | Comparable to other high-density polyethylene products |
Tensile Strength | Approximately 20 – 35 MPa | Provides resistance to stretching forces |
Impact Strength | Exceptionally high (can exceed 100 J/m) | Excellent for shock absorption and high-impact applications |
Elongation at Break | 300% – 500% or more | Indicates high ductility and flexibility |
Hardness | Around 60–70 Shore D | Depending on processing and any additives present |
Coefficient of Friction | 0.05 – 0.10 | Among the lowest for engineering plastics |
Operating Temperature | -200°C to +80°C (continuous) | Short-term exposure to higher temperatures is possible |
Melting Point | ~130°C (approx.) | Sets the upper limit for many processing applications |
Moisture Absorption | < 0.01% | Virtually impervious to water, ensuring long-term stability |
Product Benefits:
-Enhanced Durability:
The ultra-high molecular weight delivers unmatched resistance to wear, making these rods suitable for harsh, high-friction environments.
-Low Maintenance Costs:
Their self-lubricating and chemically inert nature reduces the need for frequent maintenance or replacement, lowering long-term costs.
-Versatile Performance:
UHMWPE rods perform well across diverse applications, from heavy-duty industrial machinery to food processing equipment and medical devices.
-Safety and Reliability:
Their high impact resistance and low friction contribute to safer operation in applications involving moving or load-bearing components.
-Eco-Friendly:
Being a thermoplastic, UHMWPE is recyclable, which supports environmentally sustainable practices.
-Customizable:
Available in various grades and dimensions, UHMWPE rods can be tailored to meet specific design and performance requirements.
Applications:
UHMWPE rods are employed across a wide range of industries due to their robust properties:
-Industrial Machinery:
Used as wear strips, bushings, rollers, and guide rails in high-friction environments.
-Food Processing & Packaging:
Employed in cutting boards, chutes, and parts of processing equipment where hygienic, low-friction surfaces are required.
-Medical Devices:
Components in surgical instruments, prosthetic parts, and implants benefit from the biocompatibility and durability of medical-grade UHMWPE.
-Transportation & Heavy Equipment:
Used in applications like conveyor rollers, truck bed liners, and components for mining or construction equipment.
-Custom Engineering Applications:
Ideal for prototyping, robotics, and any specialized application where high wear resistance and low friction are crucial.
Storage & Handling:
Proper storage and handling are critical to maintaining the quality and performance of UHMWPE rods:
-Storage Environment:
Store in a cool, dry, and well-ventilated area away from direct sunlight to prevent UV degradation.
Avoid extreme temperature fluctuations that may impact the material's properties.
-Handling Guidelines:
Handle with clean gloves to avoid contamination.
Use appropriate lifting or handling equipment to prevent bending, scratching, or other physical damage.
-Packaging:
Keep in original or protective packaging to guard against dust, scratches, and moisture during transit and storage.
-Inspection:
Periodically inspect stored rods for any signs of surface damage or deformation, particularly if they are stored for long periods.
FAQ
Q1: What is UHMWPE and why is it used for rods?
A: UHMWPE stands for Ultra-High Molecular Weight Polyethylene. It is used for rods because its extremely long polymer chains provide excellent wear resistance, high impact strength, and low friction properties, making it ideal for demanding applications.
Q2: How do UHMWPE rods compare with other types of plastic rods?
A: Compared to standard plastic rods, UHMWPE rods offer superior abrasion resistance, enhanced toughness, and a lower coefficient of friction. They perform exceptionally well in high-wear or high-impact environments.
Q3: What industries commonly use UHMWPE rods?
A: They are widely used in industrial machinery, food processing, medical devices, and transportation equipment, among other sectors, due to their durability and low maintenance requirements.
Q4: How are UHMWPE rods processed or machined?
A: UHMWPE rods can be machined using carbide or diamond-tipped tools due to their high toughness. They can be cut, drilled, turned, and sometimes thermoformed, although care must be taken because of the material’s high abrasion resistance.
Q5: How does UHMWPE compare to nylon rods?
A: UHMWPE has better abrasion resistance, lower moisture absorption, and higher impact strength but lower tensile strength.
Q6: Can UHMWPE rods replace metal bearings?
A: Yes—they reduce noise, eliminate lubrication, and resist corrosion, but check load requirements.
Q7: Can UHMWPE rods handle high-speed applications?
A: Yes—low friction and self-lubricating properties make them ideal for high-speed rollers and gears.
Q8: What is the difference between HDPE, UHMWPE, and TEFLON Rods?
A: Please refer to the matrix below:
Aspect | UHMWPE | HDPE | PTFE (Teflon) |
Abrasion Resistance | Exceptional | Moderate | Poor |
Max Load Capacity | Moderate | Low | Low |
Coefficient of Friction | 0.10–0.20 | 0.20–0.30 | 0.05–0.10 |
Temp Resistance | -200°C to +80°C | -50°C to +80°C | -200°C to +260°C |
Cost | $10–20/kg | $2–5/kg | $30–50/kg |
Primary Uses | High-wear parts, medical | Tanks, low-stress guides | Seals, non-stick coatings |
The prices are just for reference. Please contact us for details.
